Meho - HCP Air Systems

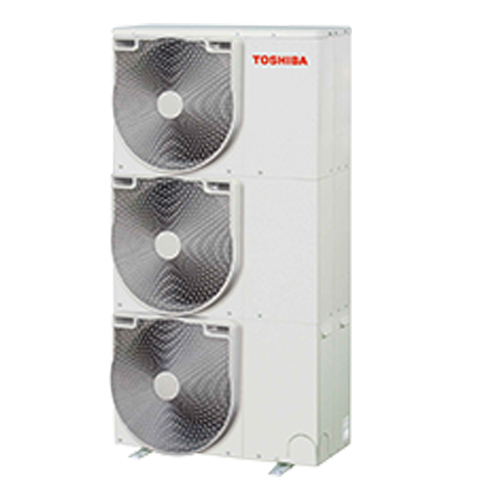

Toshiba VRF Side Discharge Smms -e

The all new side discharge VRF air conditioner lineup lets you cool or warm as many as 12* rooms with a single system.
Outdoor units ranging from 4 to 12 HP, offer best in class energy savings, installation flexibility and quiet operation, plus with 13 indoors to choose from, the side discharge VRF makes a perfect solution for showrooms and office buildings.

Available capacities : 8.73kw (3HP), 10.91kw (4HP), 13.00kw (5HP), 17.46kw (6HP), 21.83kw (7HP), 26.20kw (10HP)

Features

Greater efficiency performance, High connecting ratio upto 170%*, industry leading installation flexibility, Smartphone connectivity for testing and commissioning, industry leading farthest equivalent length, industry leading height between IDUs, High reliability.

Specifications
Power supply	V/Ph/Hz	230V/1/50
Cooling capacity	kW	3.60
Power Consumption	kW	1.12
EER	W/W	3.21
Star Rating		3

Indoor Unit
Air Flow (hi)	CMH (m3/s)	620 (0.17)
Dehumidifying capacity	l/h	2.0
Sound pressure level (hi/lo)	dB(A)	42/31
Dimensions (h x w x d)	cm	27.5 x 79 x 22.5
	m	0.27 x 0.79 x 0.23
Weight	kg	10

Outdoor Unit
Sound pressure level (hi)	dB(A)	50
Operating range	°C	21~46
Dimensions (h x w x d)	cm	55 x 78 x 29
Weight	kg	31
Flare connections (Liquid-Gas)	cm	0.64 - 1.27
Maximum pipe length	m	15
Maximum height difference	m	6
Chargeless pipe length	m	15

Filters
Active Carbn Catechin		Yes
Pre-filter		Yes

Features
Self cleaning		Yes
Hi-Power		Yes
Eco-Logic		Yes
Comfort-Smart Airflow		Yes
Fan Speed (Powerful & Precise)		Yes
Off timer (0.5, 1, 1.5,... 12hrs.)		Yes
